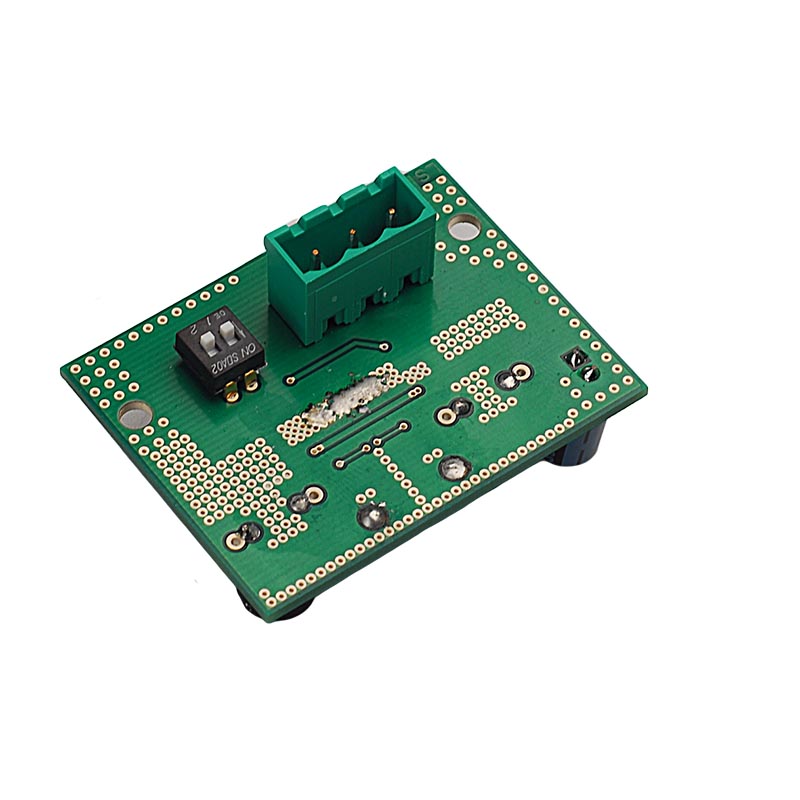

Amplifier card ST530, 30 W 24 Vdc

Main features:

• power: 30 W rms
• class D high efficiency
• power selector 30-20-10 W
• audio signal input: max 12 Vpp
• total harmonic distortion: less than 0.1% at 1 kHz
• frequency response: 30 Hz - 20,000 Hz
• input impedance : 6,4 kohm (30 W), 9 kohm (20 W), 13 kohm (10 W)


Weight: 21 gr

Power supply: 24 Vdc stabilized

NOTES: for 6-8 ohm impedance speakers
