On-wall speaker for indoor or protected outdoor purposes, EN54-24 certified.

Technical features

Click on the type below for more details and variants

EWT4M10B
System
100V EN54-24
Power
Wrms
10-5-2,5
Impedance
ohm
890-1800-3500 (a 1KHz: 860-1700-3300) Ω
Frequency range Hz
240÷20000 (+/- 7dB)
SPL
1W/1m
92dB
SPL
MAX
102dB
Coverage angle
degrees
209°
Weight
kg
2 kg
Dimensions
mm
Ø184 x H137,5mm
Type

EWT4M10B

EWT4M10B: On-wall metal loudspeaker with metal fire dome, round shape, EN54-24 certified

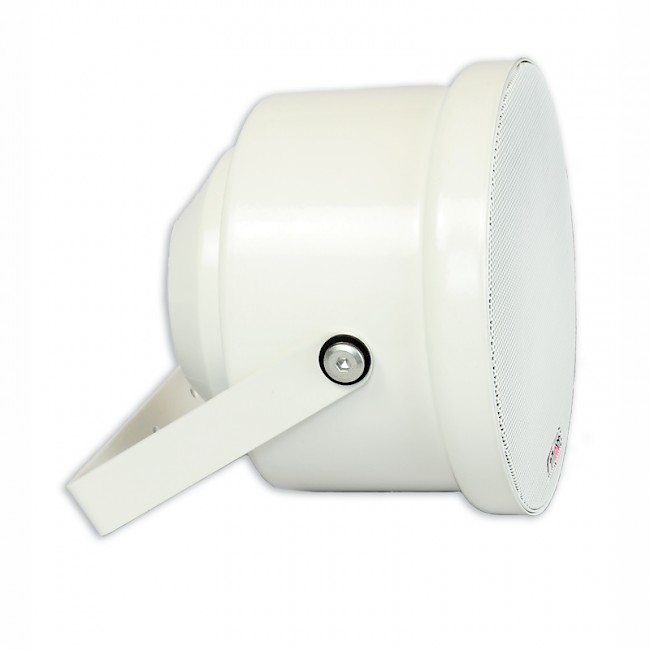

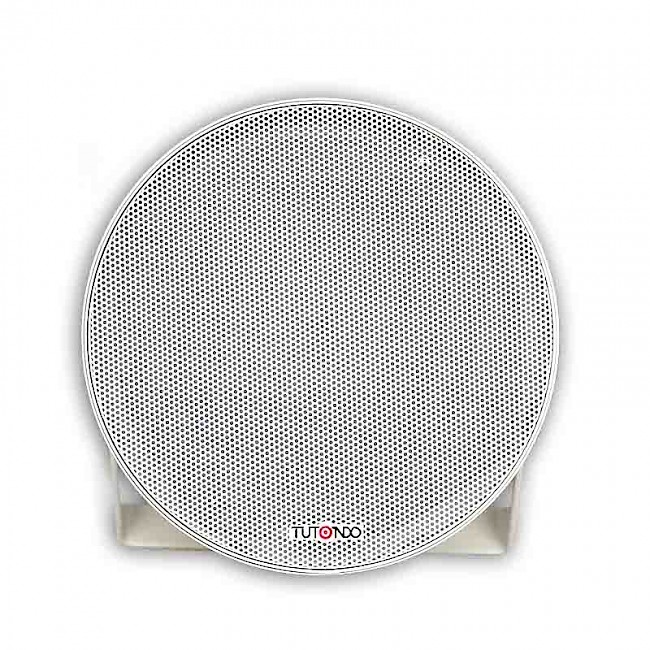

On-wall speaker, round shape, 100V, 10W, EN54-24 certified, with bracket for indoor or protected outdoor purposes.

  • wide band 6" double cone speaker
  • linear audio transformer for connection to 100V constant voltage lines or 70V
  • thermal fuse protection of the line in case of overheating
  • bypass capacitor for systems with DC control
  • ceramic type double terminals for separate connections (line input and line output)
  • metal structure with round fire dome and micro drilled grid to protect the speaker
  • equipped with equipotential grounding socket and hook for safety rope

Weight: 2kg.
Dimensions: Ø 184 x H 137.5 mm.
Color: White (B).

NOTE:​

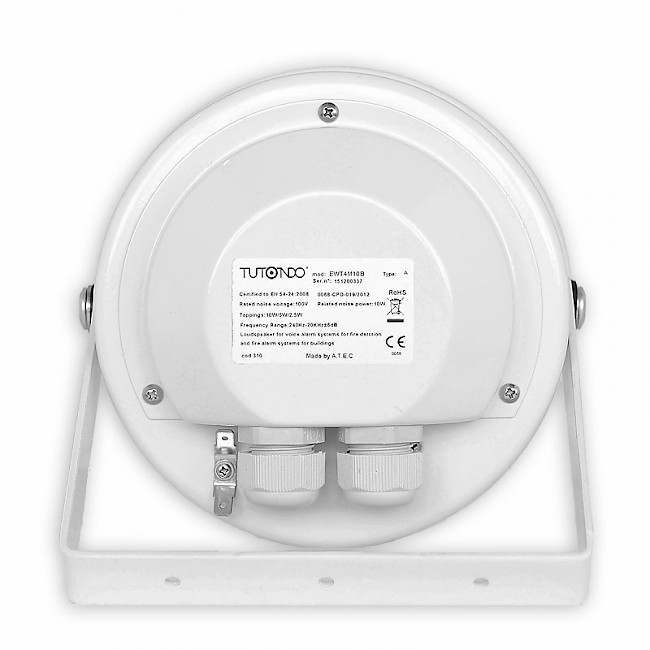

Equipped with metal junction box for connecting the wires to the terminals of the input and output lines complete with 2 clamps PG11 type. Fixing system with metal bracket.

Available fixing system with metal bracket SWP for suspended installations.
