On-wall speaker for indoor or outdoor purposes, EN54-24 certified, made of self-extinguishing V0 ABS, with aluminium micro drilled protection grid.
Suitable for internal and, if protected, for external environments.
Pendant type installation kit accessory TU SSP, consisting of a fastening hook and a 3-meter steel cord.
Click on the type below for more details and variants
| System | 100V EN54-24 |
|---|---|
| Power Wrms |
12-6-3 |
| Impedance ohm |
833-1666-3333 Ω |
| Frequency range Hz | 110÷18000 |
| SPL 1W/1m |
86.3dB |
| SPL MAX |
97.2dB |
| Coverage angle degrees |
125°(2 kHz) |
| Weight kg |
1.4kg |
| Dimensions mm |
240 x H140mm |
| System | 100V EN54-24 |
|---|---|
| Power Wrms |
24-12-6 |
| Impedance ohm |
416-833-1666 Ω |
| Frequency range Hz | 110 ÷ 20 kHz |
| SPL 1W/1m |
86.3dB |
| SPL MAX |
100.3dB |
| Coverage angle degrees |
125°(2 kHz) |
| Weight kg |
1.4kg |
| Dimensions mm |
240 x H140mm |
| System | 100V EN54-24 |
|---|---|
| Power Wrms |
24-12-6 |
| Impedance ohm |
416-833-1666 Ω |
| Frequency range Hz | 110÷18000 |
| SPL 1W/1m |
86.3dB |
| SPL MAX |
100.3dB |
| Coverage angle degrees |
125°(2 kHz) |
| Weight kg |
1.4kg |
| Dimensions mm |
240 x H140mm |

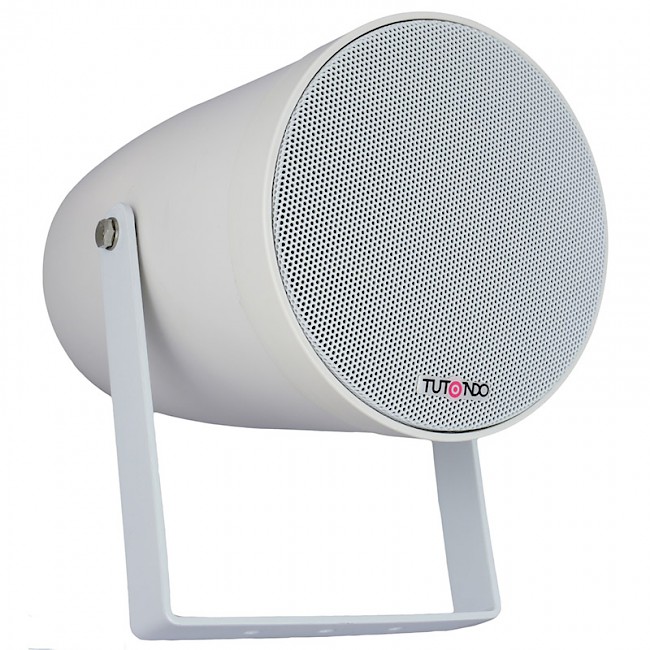

Acoustic on-wall projector 100V, 12W, EN 54-24 certified, made of self-extinguishing V0 ABS, with aluminium micro drilled protection grid.
Suitable for internal and, if protected, for external environments (IP54).

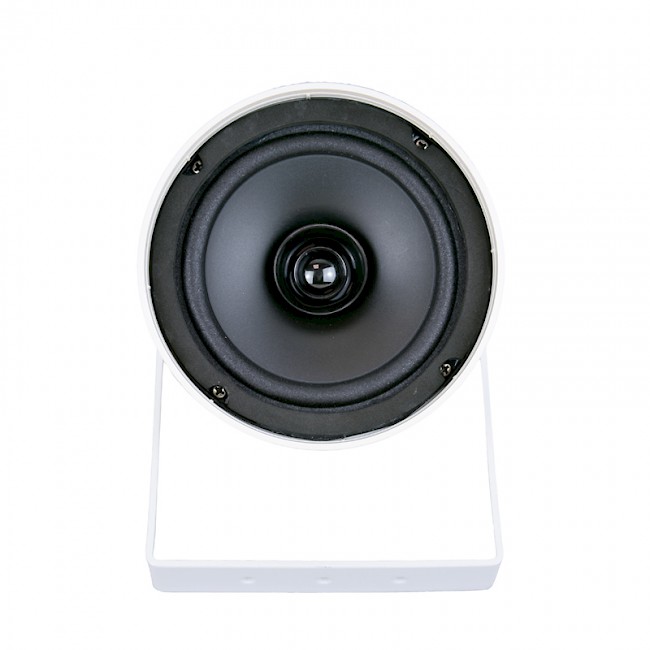

5” broadband dual-cone speaker, 100V 12-6-3 W audio transformer. With adjustable fixing bracket.
Thermal fuse protection of the line in case of overheating, ceramic type double terminals for separate connections.

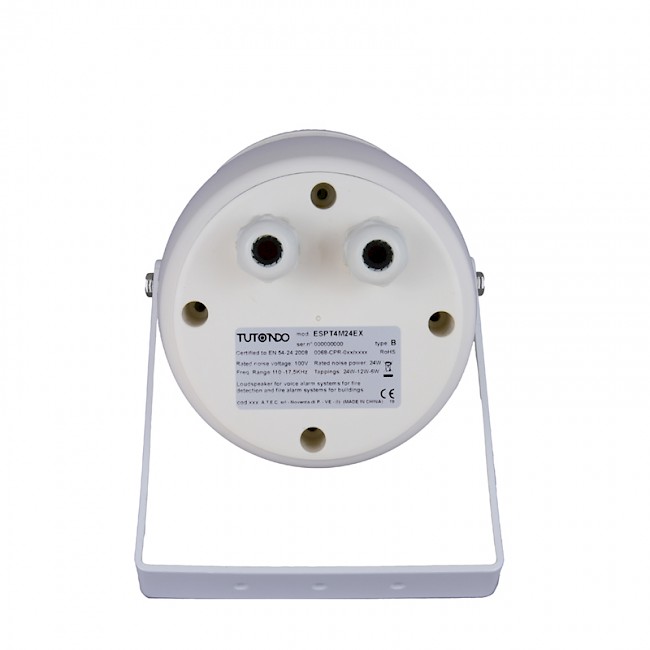

Watertight lid, with 2 clamps PG11 type for connecting the input and output lines to the terminals.
Weight: 1,4 kg.
Dimensions: 240 x H140 mm
Color: White (B)
