EPT4 Piramide EN54-24

On-wall speaker EN54-24 certified.

Technical features

Click on the type in the table below for more details and variants

Type	System	Power Wrms	Impedance ohm	Frequency range Hz	SPL 1W/1m	SPL MAX	Coverage angle degrees	Weight kg	Dimensions mm
EPT43L12	100V EN54-24	12-6-3	1000-2000-4000 Ω	140÷20000	84dB	95dB	180°x180°	1.5kg	H191 x W271 x P56mm

Click on the type below for more details and variants

EPT43L12

System	100V EN54-24
Power Wrms	12-6-3
Impedance ohm	1000-2000-4000 Ω
Frequency range Hz	140÷20000
SPL 1W/1m	84dB
SPL MAX	95dB
Coverage angle degrees	180°x180°
Weight kg	1.5kg
Dimensions mm	H191 x W271 x P56mm

Type

EPT43L12

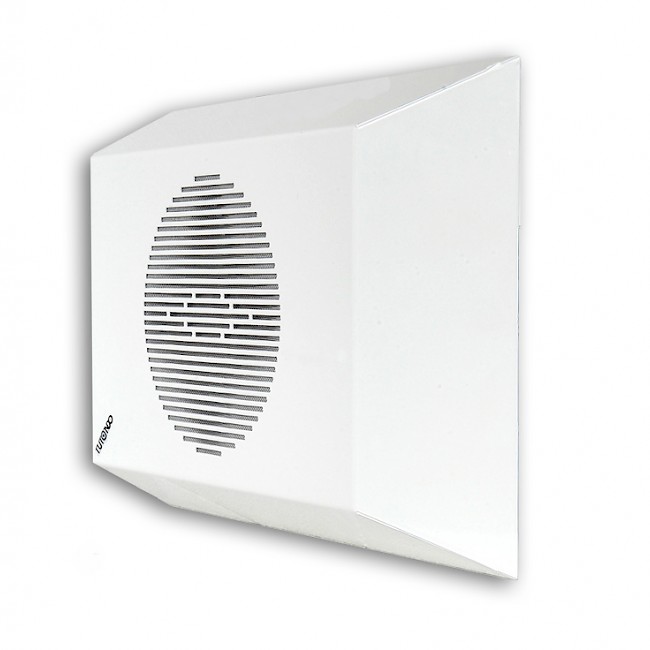

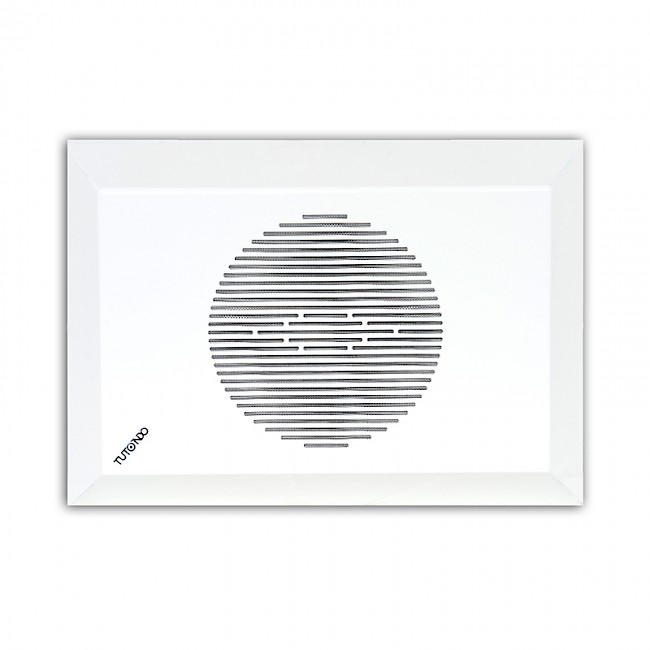

EPT43L12: On-wall metal loudspeaker, EN54-24 certified.

Wall or ceiling loudspeaker, 100V, 12W, EN54-24 certified, made of micro-drilled trapezoidal steel sheet, suitable for indoor environments and if protected for outdoors

Double cone speaker (5”) wide-band
linear audio transformer for connection with 100V audio lines and 80 ohms outlet
thermal fuse protection of the line in case of overheating
ceramic type double terminals for separate connections (line input and line output)
complete with metal junction box for connecting wires to terminals of input and output lines

Weight: 1,55Kg
Dimensions: H191 x L271 x P56 mm.
Colors: White (B), Black (N).

Download

File name	Weight [kB]
Instructions for EVAC speakers
Declaration of Performance (DOP)
EN 54 Certificate

Available variants

EPT43L12 colors

EPT43L12B: White
EPT43L12N: Black
