Flush mounted loudspeaker, square or circular.
Characterised by low visual impact, it is flexible and adaptable to various and sophisticated architectural situations.
Suitable to be installed flush, wall or ceiling, gypsum board or brick.
230 x 230 mm / Ø 230 mm.
Plastic Free
Click on the type below for more details and variants
| System | 8 Ω |
|---|---|
| Power Wrms |
80 - 160 |
| Impedance ohm |
8 Ω |
| Frequency range Hz | 60÷20000 |
| SPL 1W/1m |
88dB |
| SPL MAX |
107dB |
| Coverage angle degrees |
160° |
| Weight kg |
1.5kg |
| Dimensions mm |
230 x 230 / Ø 230 mm |
| System | ACTIVE |
|---|---|
| Power Wrms |
30-20-10 |
| Impedance ohm |
500-1k-2 kΩ |
| Frequency range Hz | 60÷20000 |
| SPL 1W/1m |
- |
| SPL MAX |
103dB |
| Coverage angle degrees |
160°x160° |
| Weight kg |
1.7kg |
| Dimensions mm |
230 x 230 / Ø 230 mm |
| System | 100V-80 Ω |
|---|---|
| Power Wrms |
46-24-12 |
| Impedance ohm |
217-416-833-(80) Ω |
| Frequency range Hz | 60÷20000 |
| SPL 1W/1m |
88dB |
| SPL MAX |
- |
| Coverage angle degrees |
160°x160° |
| Weight kg |
1.5kg |
| Dimensions mm |
230 x 230 / Ø 230 mm |
Two-way system with two speakers for undistorted sound reproduction over an extended frequency range (80 W) and satellite for home theatre system (160 W). Suitable to be installed flush, wall or ceiling. 160 mm Midwoofer, 28 mm dome tweeter with neodymium magnet. Bass reflex with tuned waveguide duct for a more extended and accurate reproduction of low frequencies.
Acoustic crossovera frequency: 2,7 kHz.

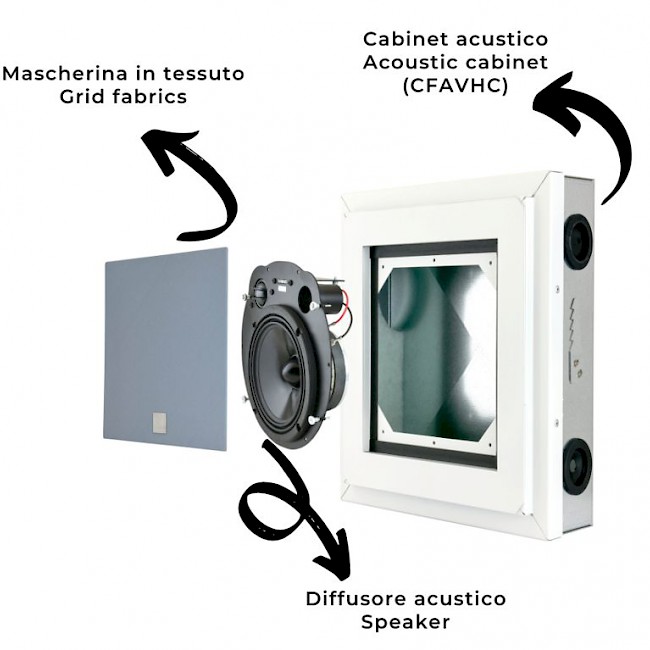

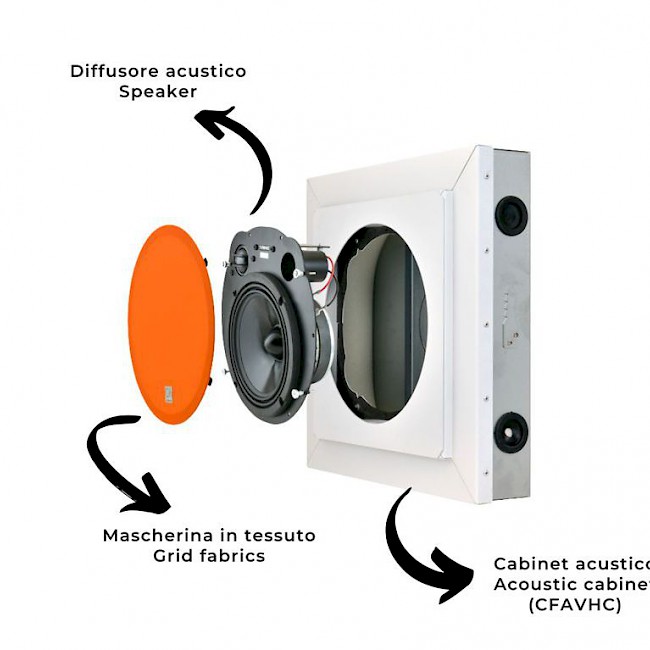

Reinforced and treated acoustic cabinet with 2 holes for input and output cables, not included OH CFSVHQ for square finishing or OH CFSVHC for round finishing.
Optional accessories: stretch fabric flush mounted or metal mesh finishing, flush mounted or external frames made of various materials.
Dimensions: flush mounted face 230 x 230 / diam. 230 mm.
Weight: 1,5 kg
