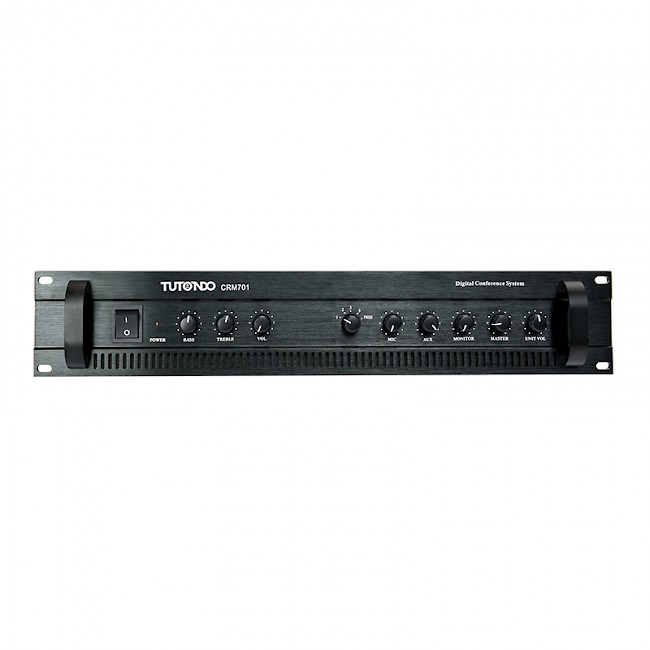

CRM701 System Control Unit
conferences, for connecting chairman and delegate bases.
Connection of up to 60 conference microphone bases, expandable up to 250.

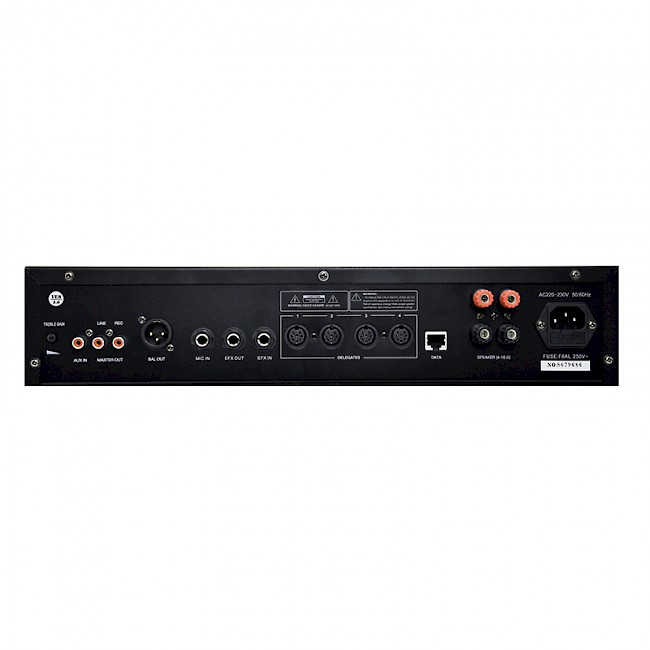

General features:
-General on/off switch
-4 8-pin DIN BUS inputs for chairman and delegate microphone units
-1 aux-type input
-1 mic type input
-1 out and 1 input for antilarsen processor
-1 REC output
-1 balanced output
-Built-in amplifier 70+70W into 4 ohms, 60+60w into 8 ohms. -Volume controllers: Mic, Aux, Monitor, Master, Conference Bases.
-1 volume and bass-high tone controls.
-Limit of simultaneous speakers: 1-2-3-5- Free.
Speaker base is never excluded.
-Installable on 19" rack standard cabinet, footprint 2 units.
Power supply: 230 Vac, 50÷60Hz.
Dimensions: H 88 x W 483 x D 360 mm. Weight: 12.7 kg.
