Round in-wall with the greatest visual discretion (FRAMELESS only 5 mm thickness),
for in-ceiling loudspeaker.
Auf das Modell klicken, um das Datenblatt zu sehen
| System | 8 Ω |
|---|---|
| Wrms leistung | 30 |
| Impedanz ohm |
8 Ω |
| Frequenzgang Hz |
49÷20000 |
| SPL 1W/1m |
90dB |
| SPL MAX |
105dB |
| Abstrahlung Grad |
180° |
| Gewicht kg | 1 kg |
| Größe mm |
Ø 190,5 mm, P70 mm |
| System | 100V-80 Ω |
|---|---|
| Wrms leistung | 12-6-3 |
| Impedanz ohm |
833-1666-3333-(80) Ω |
| Frequenzgang Hz |
49÷20000 |
| SPL 1W/1m |
89dB |
| SPL MAX |
100dB |
| Abstrahlung Grad |
180° |
| Gewicht kg | 1 kg |
| Größe mm |
Ø 190,5 mm, P80 mm |
| System | 100V-80 Ω |
|---|---|
| Wrms leistung | 24-12-6 |
| Impedanz ohm |
416-833-1666-(80) Ω |
| Frequenzgang Hz |
49÷20000 |
| SPL 1W/1m |
89dB |
| SPL MAX |
103dB |
| Abstrahlung Grad |
180° |
| Gewicht kg | 1.2kg |
| Größe mm |
Ø 190,5 mm, P80 mm |
| System | ACTIVE |
|---|---|
| Wrms leistung | 30-20-10 |
| Impedanz ohm |
27 kΩ |
| Frequenzgang Hz |
49÷20000 |
| SPL 1W/1m |
89dB |
| SPL MAX |
105dB |
| Abstrahlung Grad |
180° |
| Gewicht kg | 1.2kg |
| Größe mm |
Ø 190,5 mm, P80 mm |
| System | 100V EN54-24 |
|---|---|
| Wrms leistung | 12-6-3 |
| Impedanz ohm |
833-1666-3333 Ω |
| Frequenzgang Hz |
155÷18000 |
| SPL 1W/1m |
91dB |
| SPL MAX |
102dB |
| Abstrahlung Grad |
180° |
| Gewicht kg | 1 kg |
| Größe mm |
Ø 190,5 mm, P95 mm |
| System | 100V EN54-24 |
|---|---|
| Wrms leistung | 24-12-6 |
| Impedanz ohm |
416-833-1666 Ω |
| Frequenzgang Hz |
155÷18000 |
| SPL 1W/1m |
91dB |
| SPL MAX |
105dB |
| Abstrahlung Grad |
180° |
| Gewicht kg | 1.2kg |
| Größe mm |
Ø 190,5 mm, P95 mm |
| System | 100V EN54-24 |
|---|---|
| Wrms leistung | 6-3-1,5 |
| Impedanz ohm |
1,6-3,3-6,6 kΩ |
| Frequenzgang Hz |
155÷18000 |
| SPL 1W/1m |
91dB |
| SPL MAX |
99dB |
| Abstrahlung Grad |
180° |
| Gewicht kg | 1 kg |
| Größe mm |
Ø 190,5 mm, P95 mm |
| System | 100V EN54-24 |
|---|---|
| Wrms leistung | 12-6-3 |
| Impedanz ohm |
833-1666-3333 Ω |
| Frequenzgang Hz |
180÷15500 |
| SPL 1W/1m |
92dB |
| SPL MAX |
102,5 dB |
| Abstrahlung Grad |
125° |
| Gewicht kg | 0,9 kg |
| Größe mm |
Ø 190,5 mm, P95 mm |

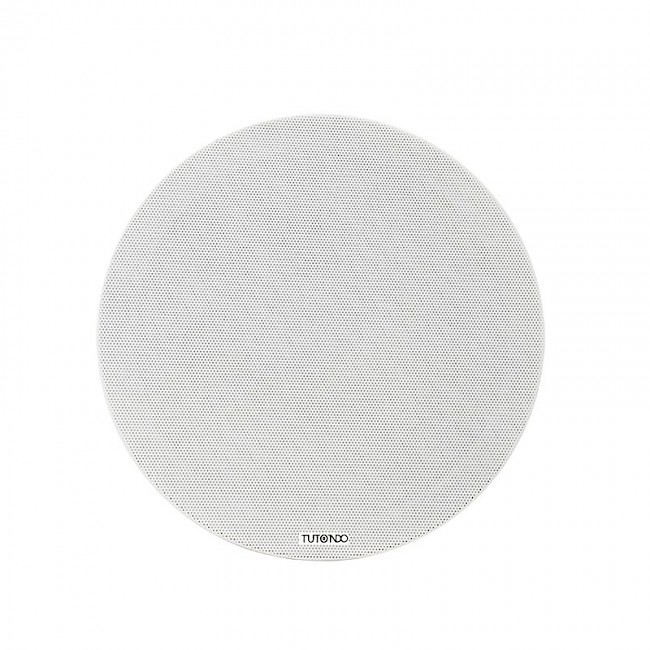

Rounded in-ceiling circular shape loudspeaker, with the greatest visual discretion (FRAMELESS only 5 mm thickness).

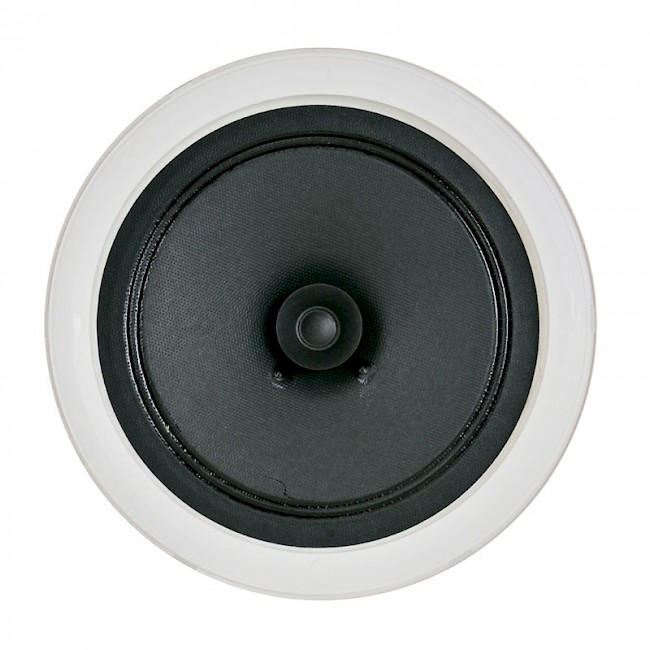

Made of ABS type structure, metal micro-perforated protection grille. Coaxial speaker system, 2 ways, fullrange 6,5" woofer with rubber suspension.

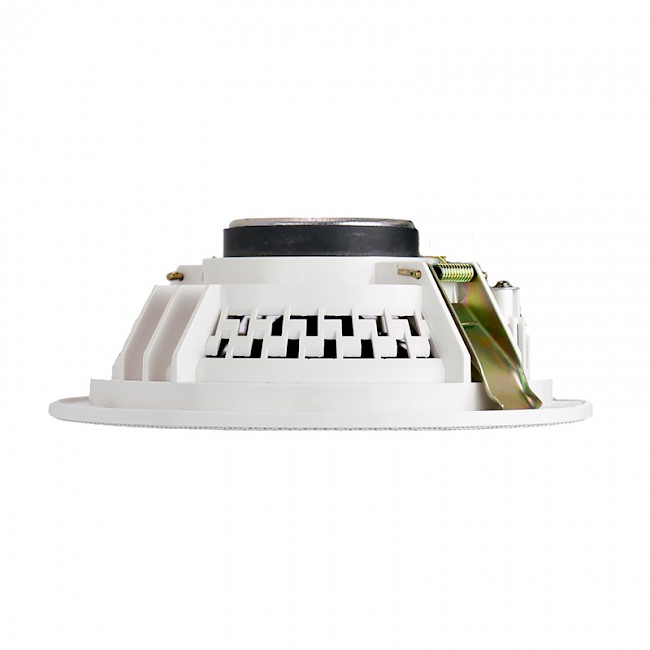

Suitable for ceiling installation on plasterboard, without screws, using the fixing system supplied.

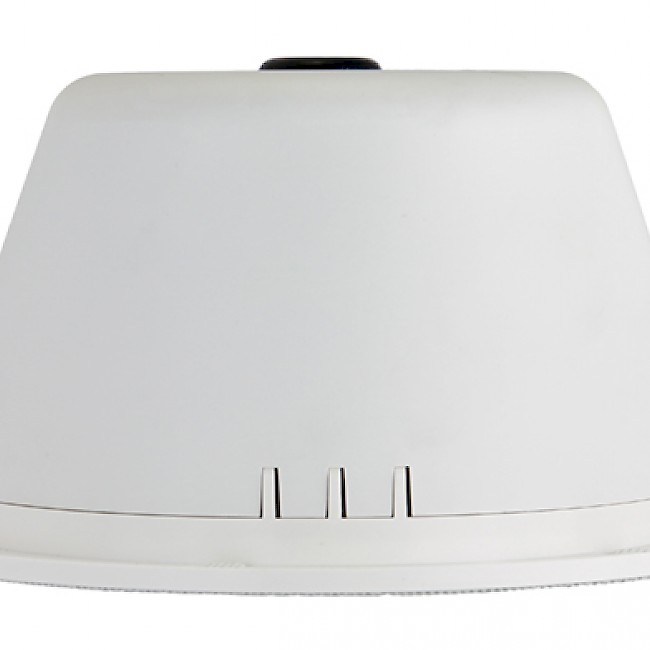

Installation on masonry is also envisaged using the CFKRC recessed acoustic cabinet with volume calculated for maximum acoustic performance, or the simplified CFKRS box (not included).
Power: 30 W.
Nominal impedance: 8 ohm.
Diameter of hole for flush mounting: 165mm
Dimensions:Ø190.5 x H70 mm
Weight: 1 kg.
Color: White (B)
